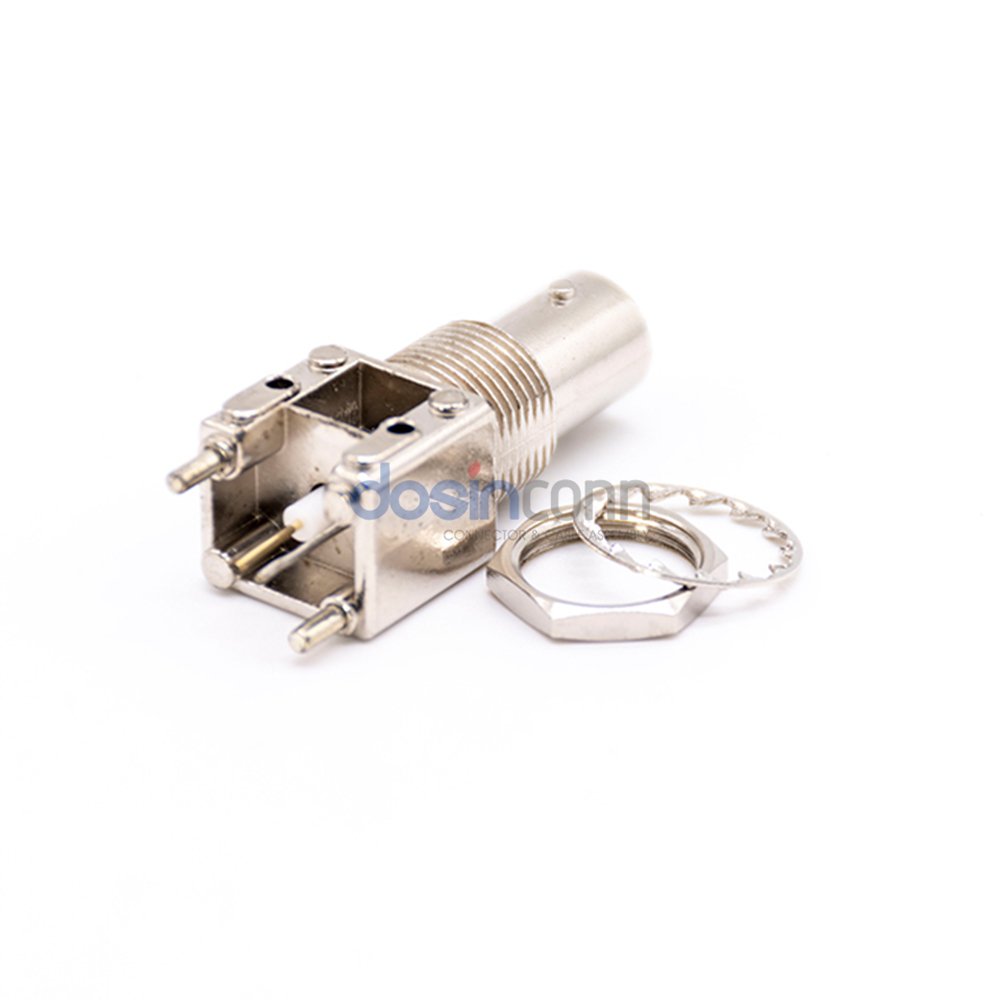

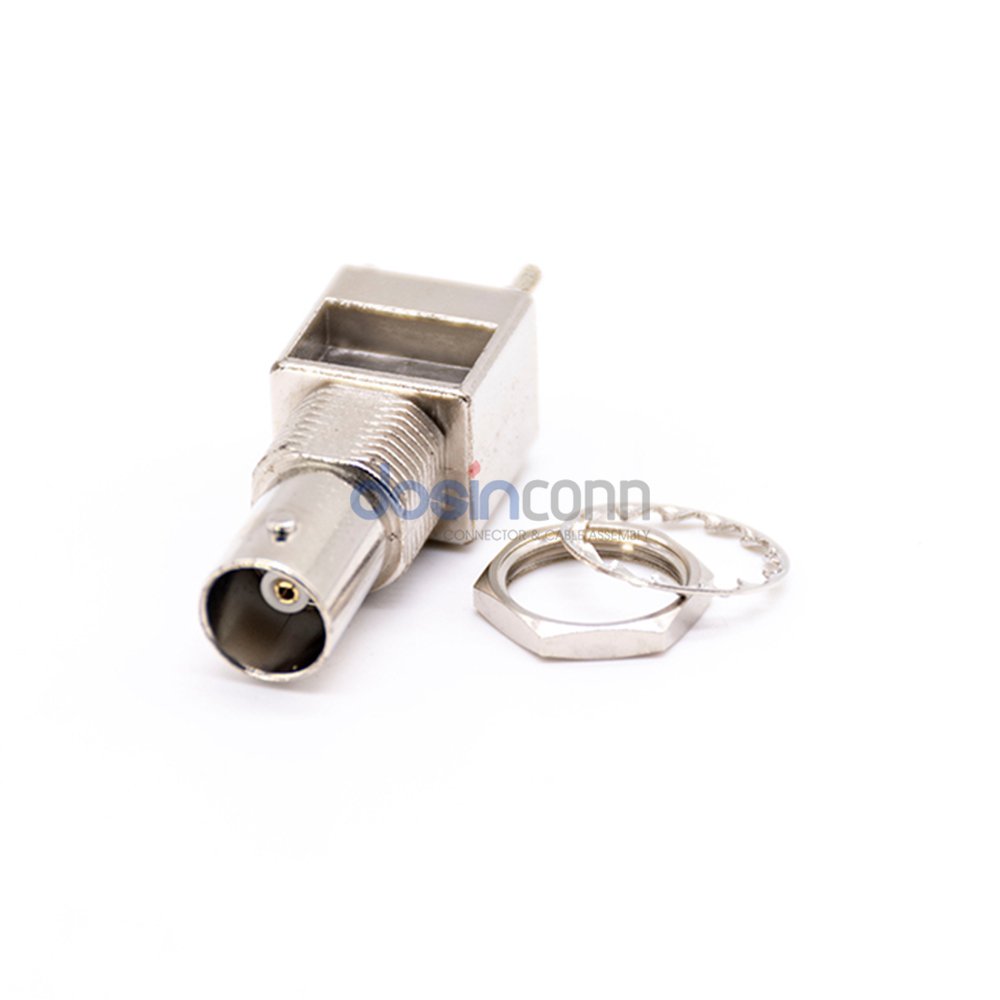

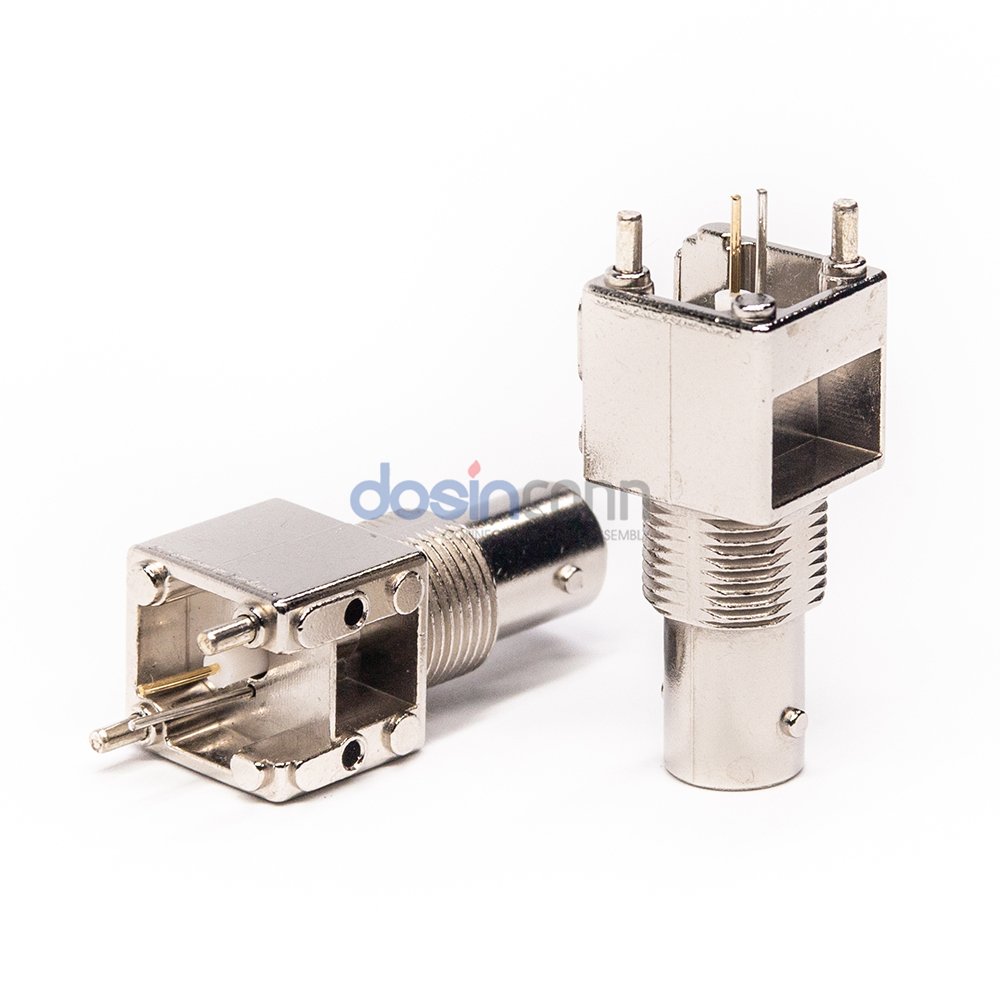

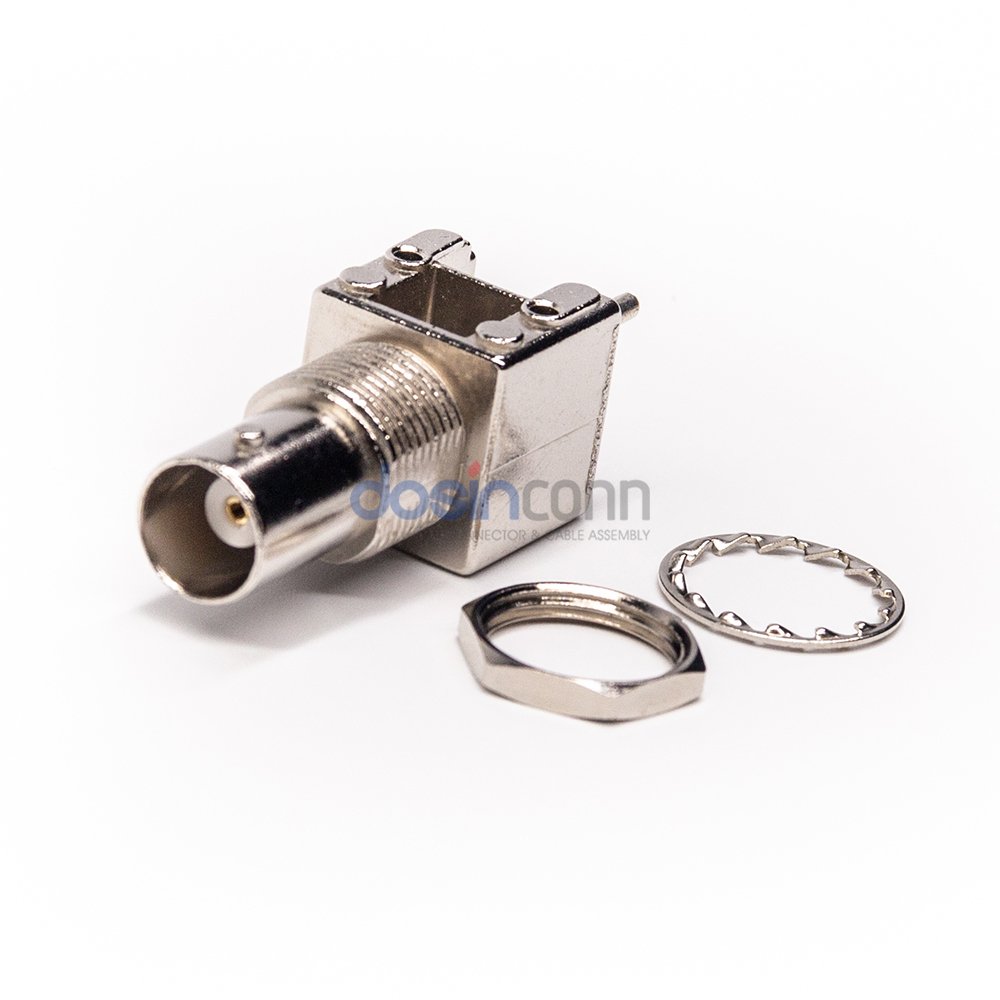

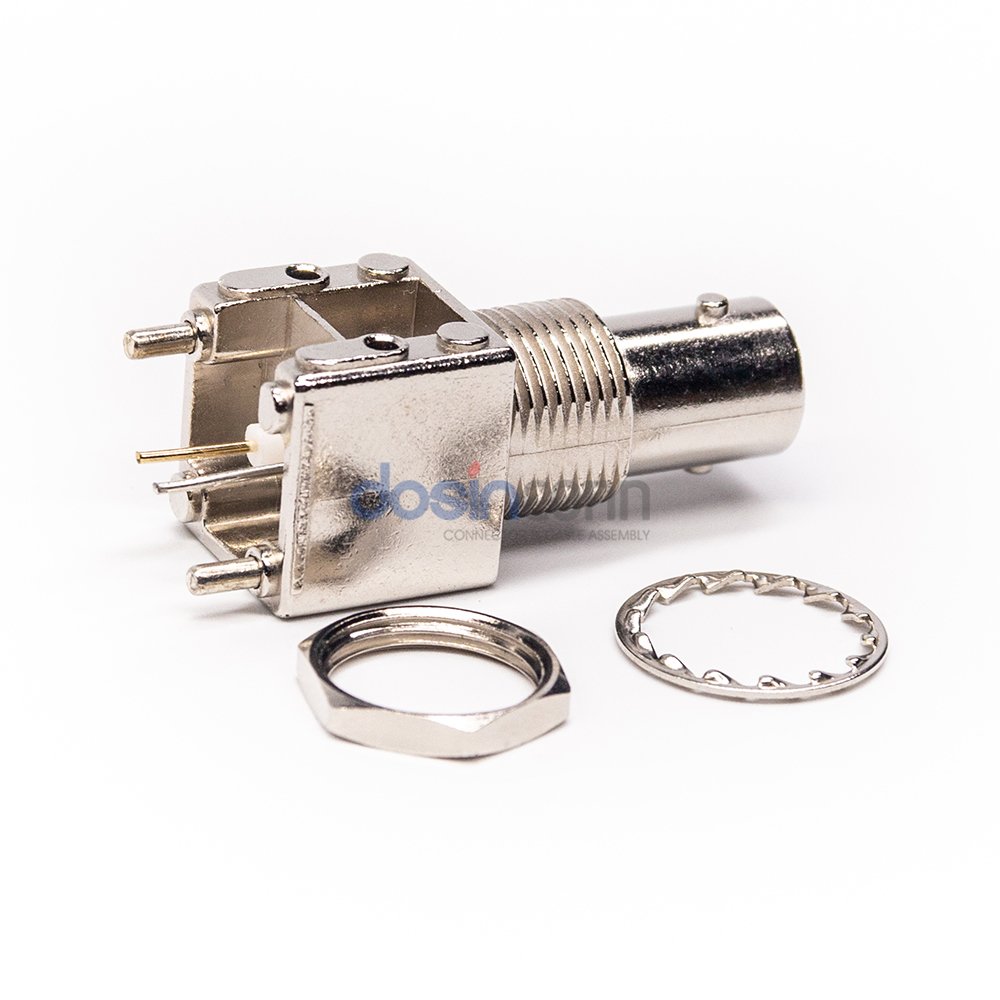

BNC Socket Straight Wall Mount Female Jack BNC PCB Connector for Antennas Broadcast Medical Equipment

Name: BNC Socket Straight Wall Mount Female Jack BNC PCB Connector for Antennas Broadcast Medical Equipment
Brand: OKwishing
SKU: 4000760290
Price: 2.52 USD
Availability: InStock
Rating: 5 (2 reviews)

$2.52

Pins:

Pin: 1 / 2 / 3 / 4 / 5 / 6 / 8

Straight / Right Angle

RG6/58/59/142/179/213/214/223/316/400

Impedance: 50 Ω / 75 Ω

Certificate:ISO9001 / CE / ROHS

LMR240/400

Male / Female

Number of Cores:

BNC Cable Assembly

BNC PCB Panel Mount

BNC Cable Connector

BNC Adapter

Quantity:

Add to Cart

Wishlist

Features

High-precision BNC female socket for seamless signal transmission

Crafted with durable brass contacts and nickel plating for superior conductivity and corrosion resistance

Precision-molded POM insulator ensures stable impedance and minimal signal loss

Straight wall-mount design with reinforced PCB solder tabs for vibration-proof installations

Gold-plated center contact (optional) delivers audiophile-grade 75Ω/50Ω impedance matching

CNC-machined threaded coupling nut guarantees secure locking with male connectors

Ideal for:

Broadcast studio SDI/HDMI over coax interfaces

Medical imaging equipment RF connections

Telecom base station antenna interfaces

Industrial automation control signal transmission

RF test equipment calibration setups

Key advantages:

Military-grade crimping tolerance (±0.01mm)

Passes 5000+ mating cycle tests

RoHS compliant with flame-retardant housing

Direct factory pricing - 40% below retail brands

MOQ 100pcs with bulk discount tiers
