Hongfa QT6-15 Concrete Brick Making Machine – Premium Hollow Block Production Line

High-Efficiency Automation

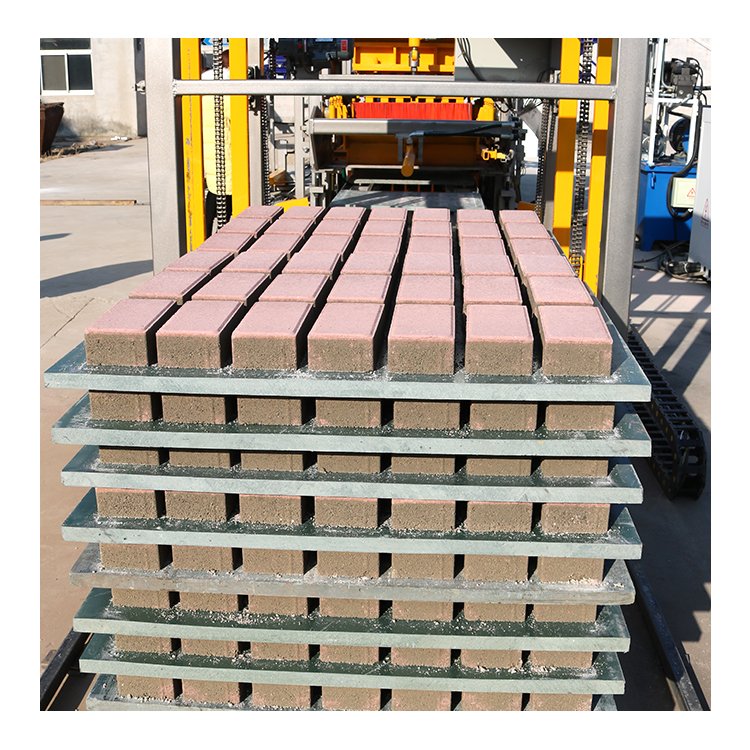

Fully automated operation with precision hydraulic system, producing up to 2,160 standard blocks (400x200x200mm) per hour. PLC-controlled for consistent output with minimal manual intervention.
Industrial-Grade Durability
Heavy-duty steel frame reinforced with laser-cut panels and powder-coated finish. Wear-resistant mold cores (HRC55 hardness) ensure 100,000+ cycles without deformation.
Multi-Material Compatibility
Processes cement, fly ash, slag, or crushed aggregates (0-8mm particle size). Adjustable vibration frequency (3,000-4,500 rpm) for optimal compaction across mix designs.
Dual-Purpose Design

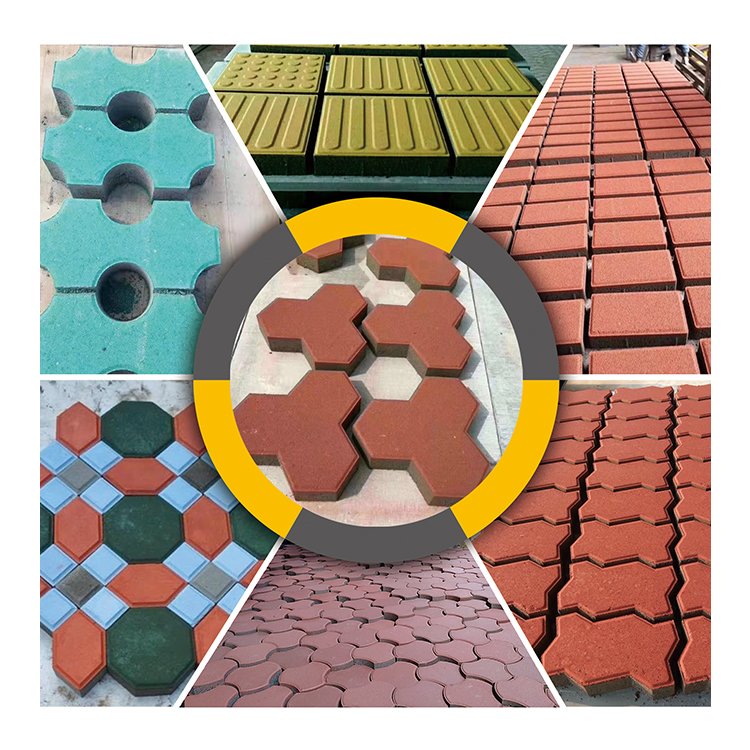

Simultaneously produces hollow blocks (50% void ratio) and solid pavers (80mm thickness). Interchangeable molds for sidewalks, retaining walls, and load-bearing structures.
Energy-Smart Engineering
15kW hybrid power system cuts energy use by 30% vs. conventional models. Integrated dust suppression nozzles meet ISO air quality standards.
Global Logistics Ready
Pre-calibrated for 50Hz/60Hz power grids. Container-optimized dimensions (6.2x2.1x2.8m) with quick-disassembly features for overseas shipping.
Bulk Order Advantage
Direct-from-factory pricing with volume discounts for 3+ units. Includes 12-month warranty on critical components and lifetime technical support.
Applications:
- Municipal road paving projects - Large-scale precast concrete factories - Sustainable construction (LEED-certified buildings) - Disaster-resistant housing developments *Note: CE & ISO9001 certified. Raw material formulas provided upon purchase.*
