GOLDCNC GV1600 CNC 5-Axis Machining Center – Precision Engineering Redefined

Unmatched Precision & Rigidity
High-grade cast iron base with polymer-concrete reinforcement ensures vibration damping and thermal stability for micron-level accuracy. Hardened linear guides and ball screws deliver repeatability within ±0.003mm.
True 5-Axis Simultaneous Machining

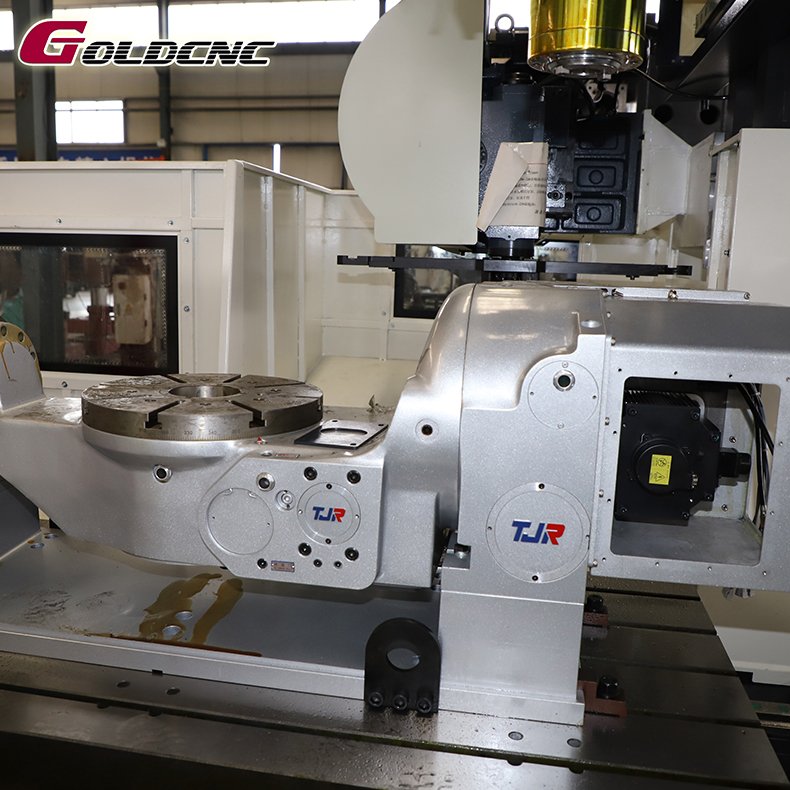

Integrated dual-axis rotary table (±120° tilt, 360° rotation) enables complex contours, undercuts, and angled features in a single setup—ideal for aerospace impellers, medical implants, and automotive prototypes.

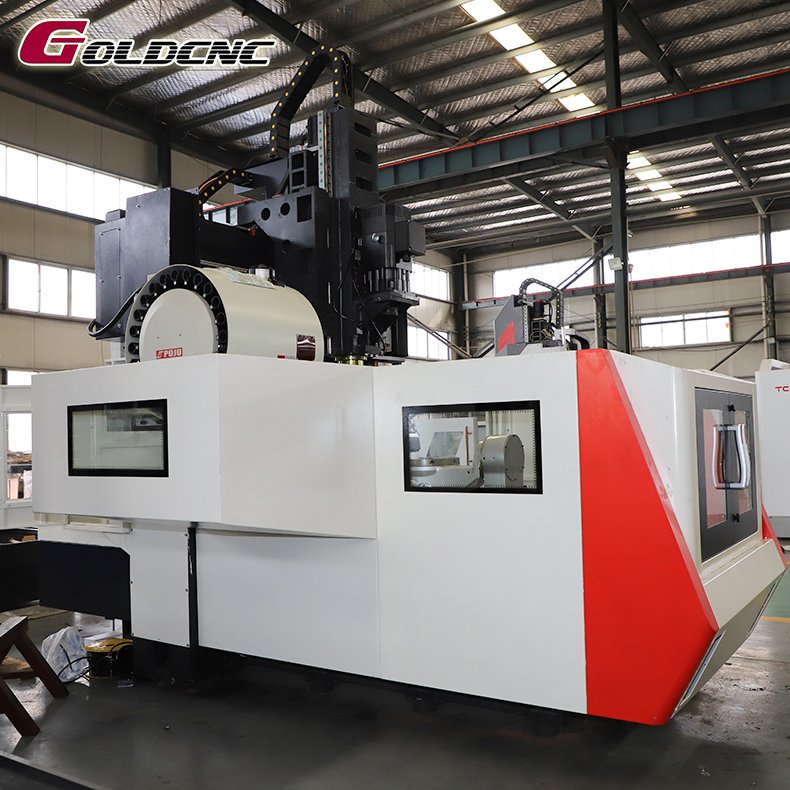

Gantry Structure for Heavy-Duty Performance
Overhead bridge design provides superior rigidity for large-part milling (max workpiece: 1600 x 1200 x 800mm). 15,000 rpm direct-drive spindle with HSK-63 taper handles titanium, Inconel, and hardened steel effortlessly.
Smart Automation Ready
Pre-installed tool changer (24 stations) and IoT-enabled control (Siemens 840D) support lights-out production. Optional robotic loading for batch machining of precision molds or defense components.
Global Wholesale Advantage
Direct factory pricing with bulk-order discounts. CE-certified, backed by 24/7 technical support and expedited global logistics for industrial buyers.
Applications:
Turbine blades, orthopedic devices, automotive jigs, marine propulsion systems, and high-tolerance die/mold manufacturing.
