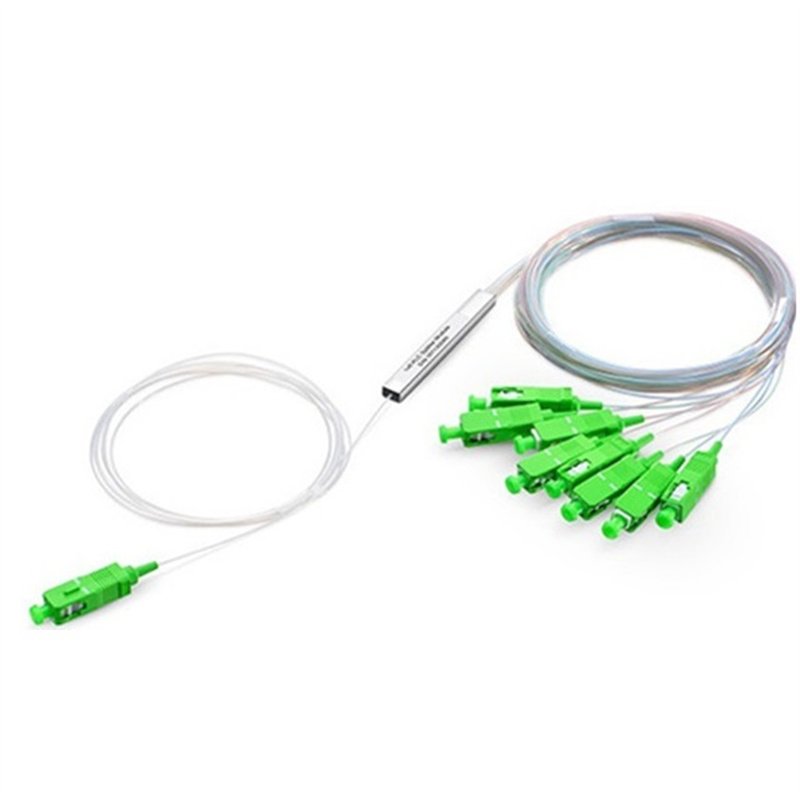

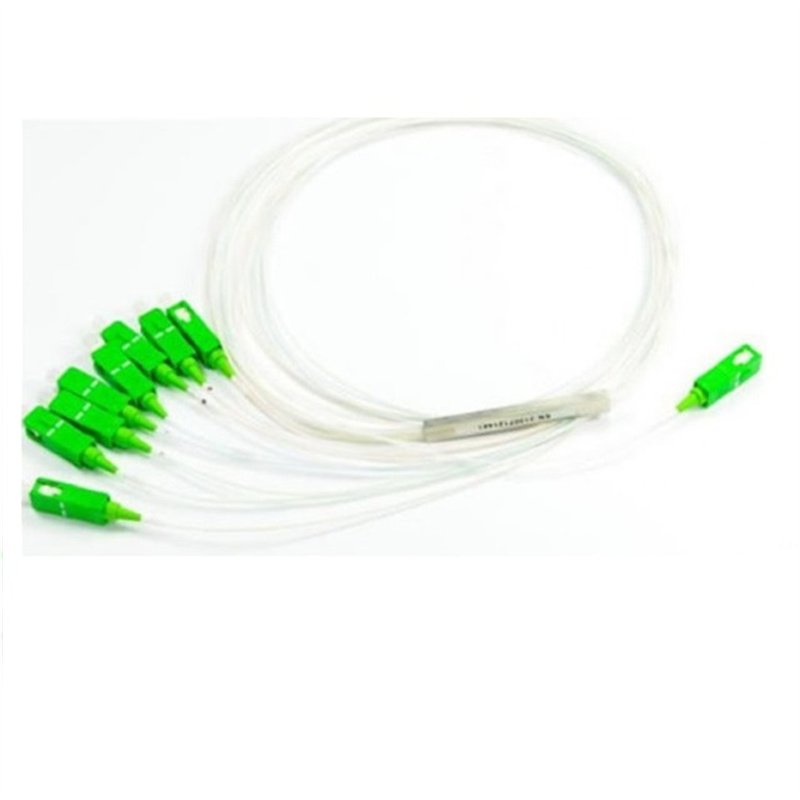

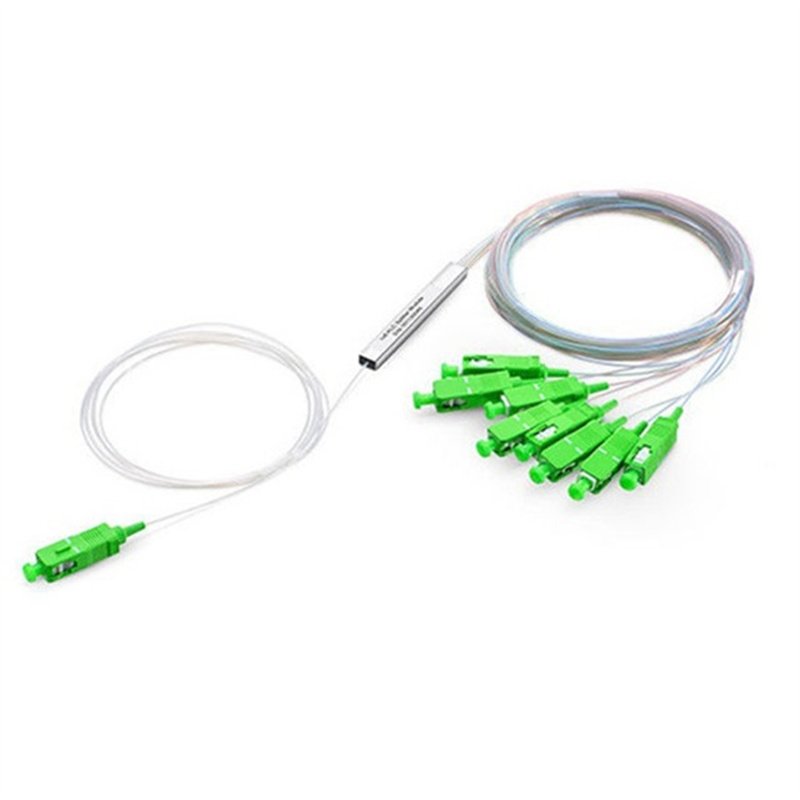

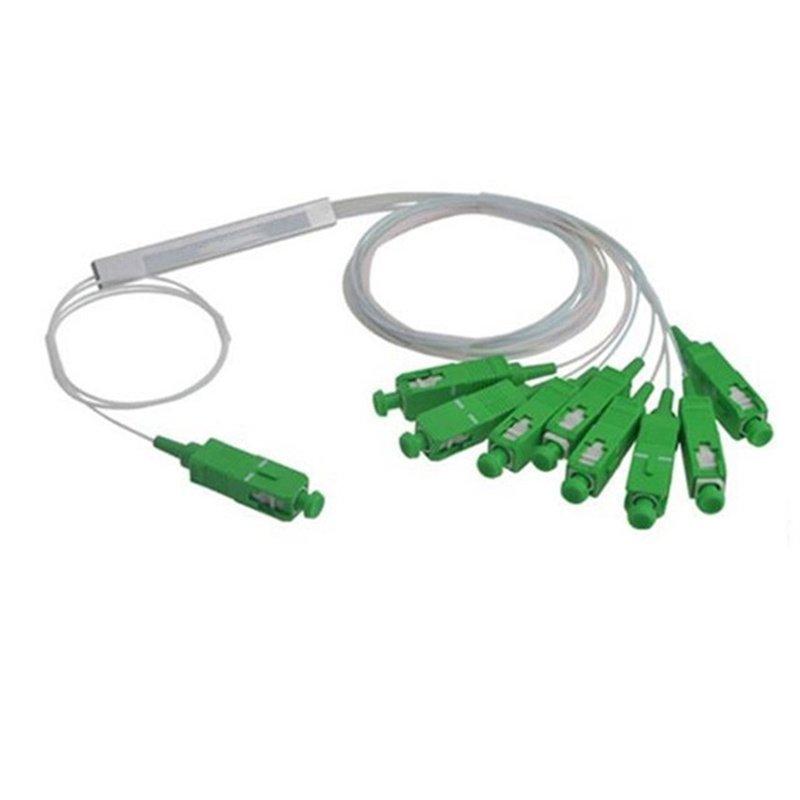

High-Precision 1x8 PLC Fiber Optic Splitter – SC/APC Termination
Ultra-compact planar lightwave circuit (PLC) design ensures minimal insertion loss (≤9.5dB) and uniform splitting ratio (±0.8dB) for reliable signal distribution. Premium-grade silica glass waveguide and advanced polishing technique deliver superior optical performance with 0.2μm ultra-smooth endfaces, reducing back reflection to <–55dB (SC/APC connector). Ideal for FTTx, PON networks, CATV, and data centers—supports wavelengths 1260–1650nm with 1.0mm loose tube or 250μm bare fiber options. RoHS-compliant epoxy-free welding and rugged ABS box housing guarantee durability in harsh environments (-40°C to +85°C). Global wholesale pricing—bulk orders available with OEM/ODM support for seamless integration.
