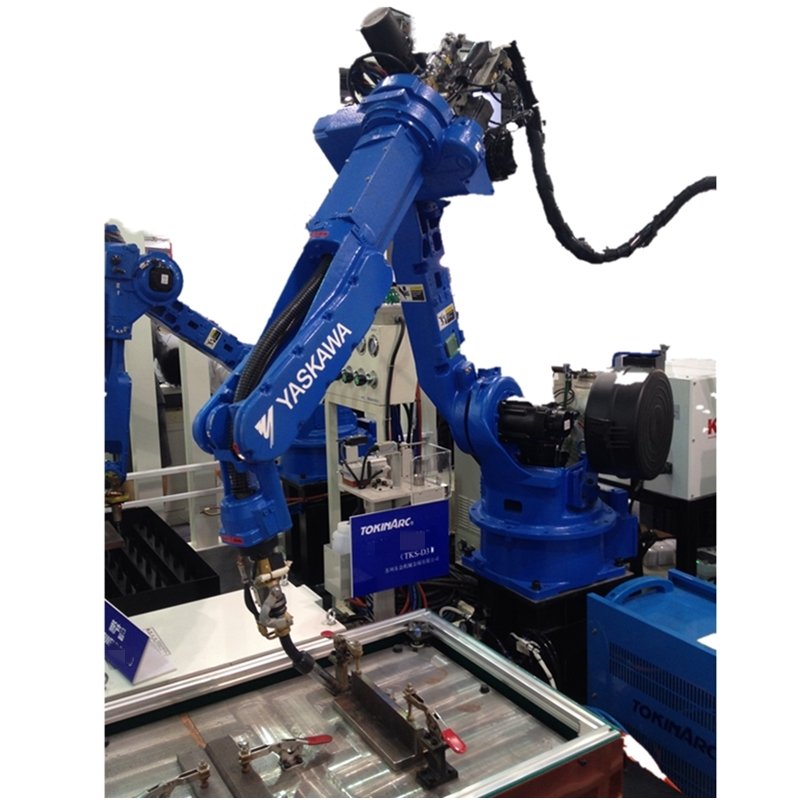

Yaskawa AR1440 6-Axis Arc/TIG Welding Robot – Precision & Power for Industrial Fabrication

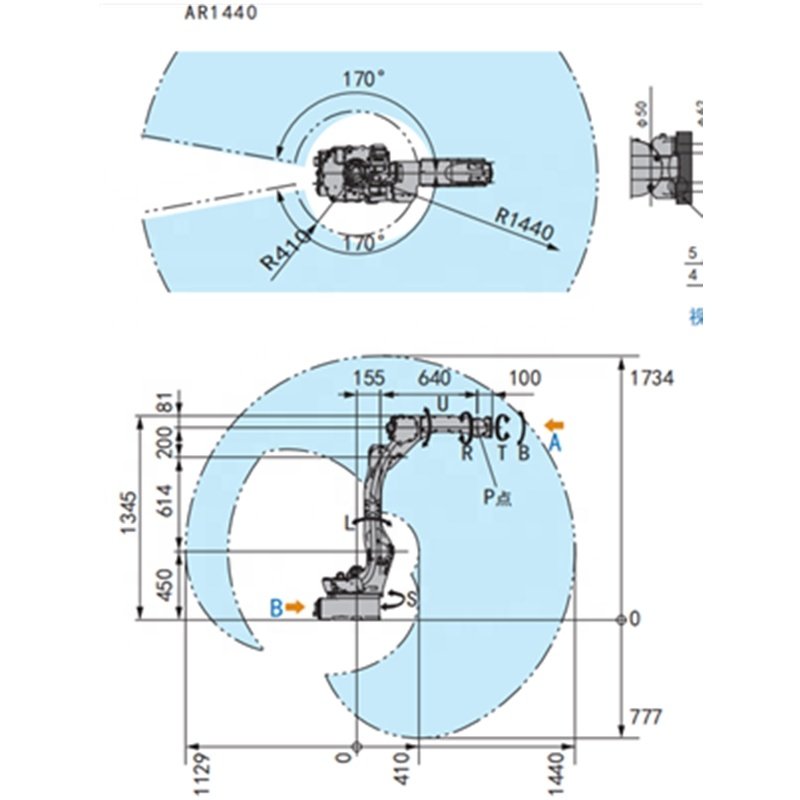

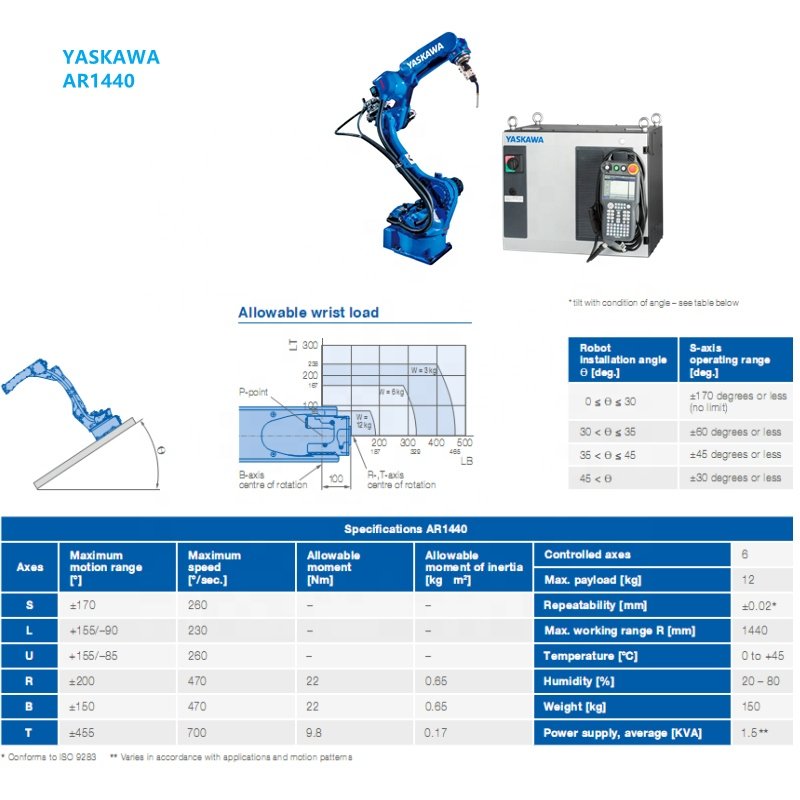

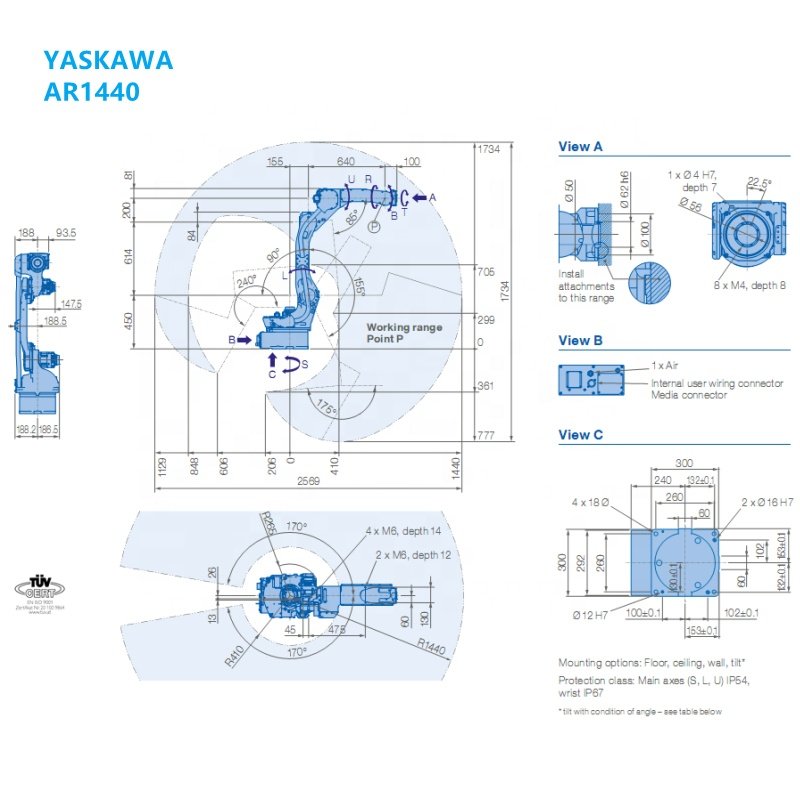

High-performance 6-axis robotic arm with ±0.08mm repeatability, engineered for ultra-precise arc/TIG welding on pipes, automotive frames, and structural components. Industrial-grade aluminum alloy body with reinforced steel joints ensures durability in high-temperature environments (up to 1,200°C torch compatibility). Integrated laser seam tracking system auto-adjusts welding path in real-time, eliminating manual recalibration for irregular surfaces. Direct-drive servo motors deliver 1440mm reach at 8kg payload, ideal for confined spaces like shipbuilding or HVAC duct assembly. Preloaded with 50+ welding programs (stainless steel, carbon steel, aluminum) and supports offline programming via USB for zero downtime. IP67-rated for dust/oil resistance in harsh workshops. Includes collision detection and emergency stop for ISO-certified safety. Compatible with Yaskawa’s 3D vision kits for automated batch welding of complex geometries. Ships with CE/UL certification.
Best for:
High-volume metal fabrication, pressure vessel manufacturers, and aerospace component welding. Bulk orders include free calibration service.
