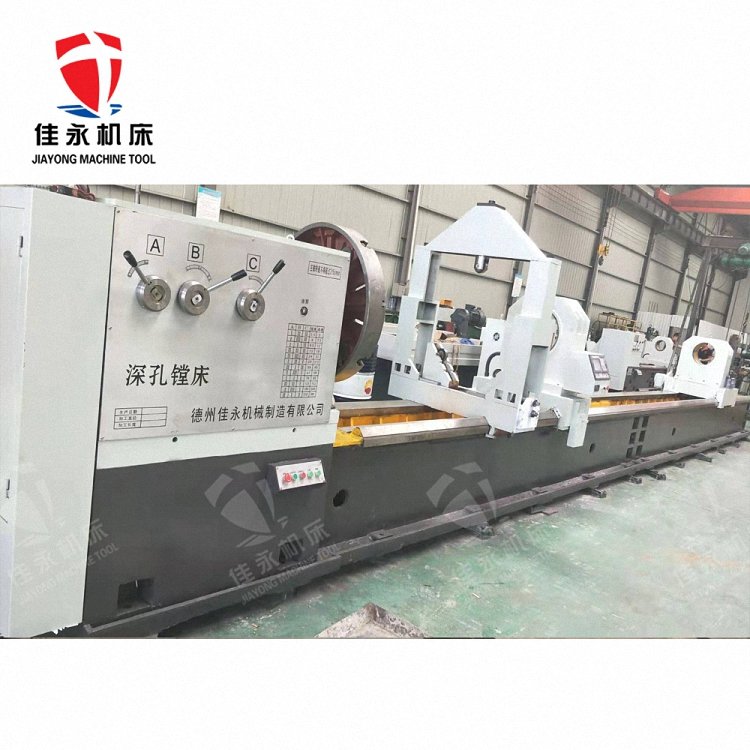

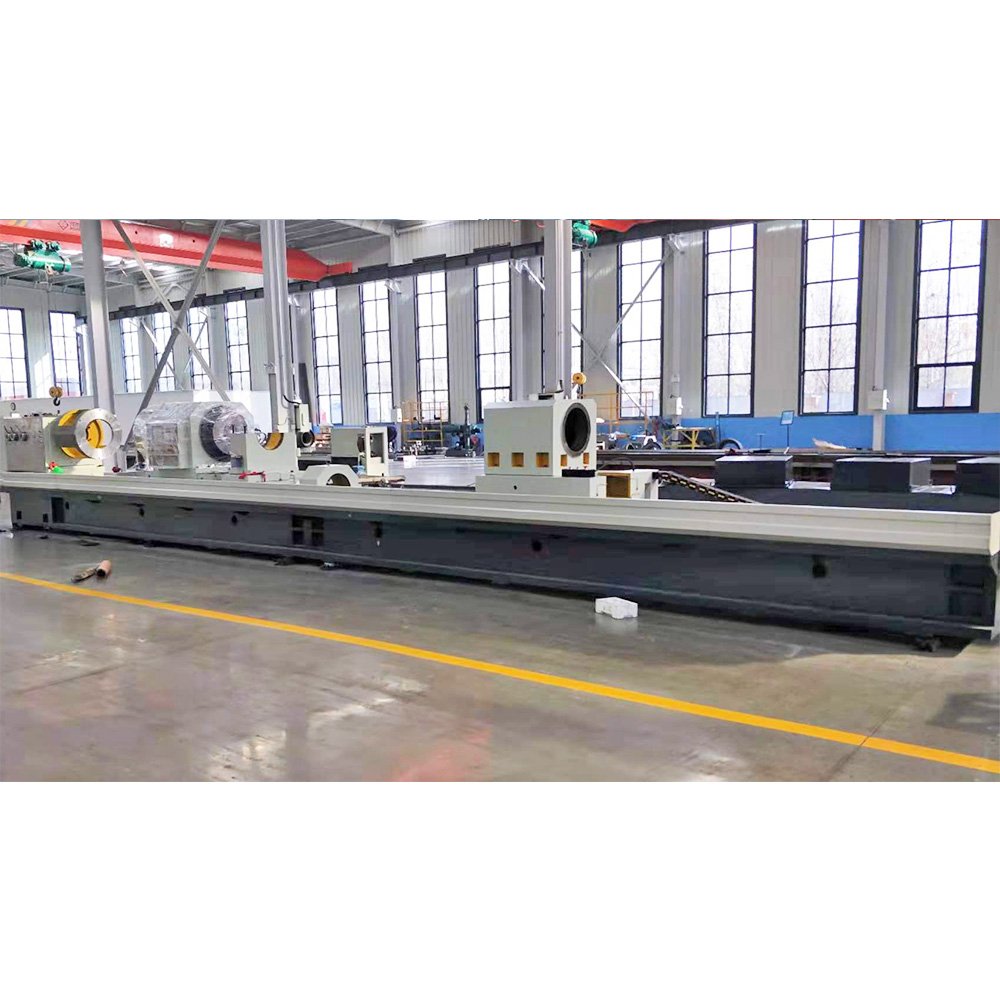

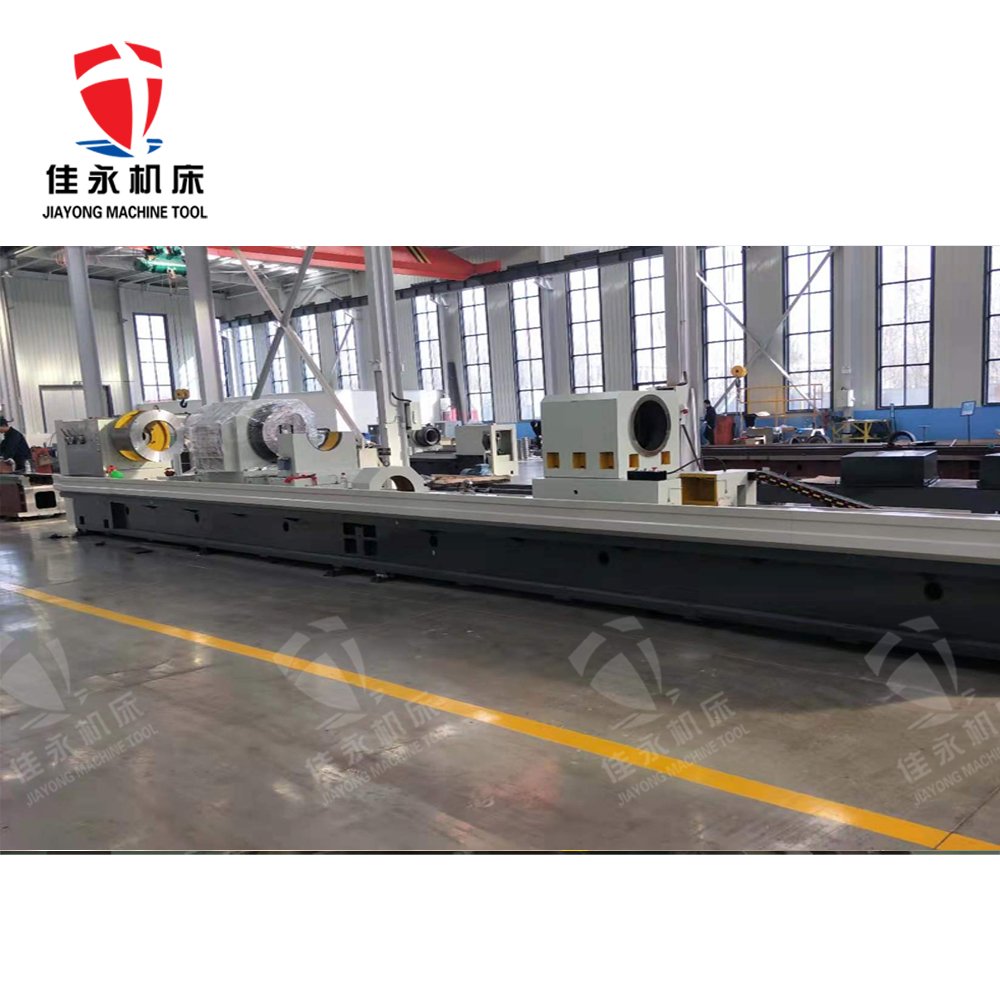

Precision CNC Deep Hole Drilling Machine for Industrial Hydraulic Systems

High-Efficiency Horizontal Design with 3M Capacity

Engineered for seamless boring of hydraulic cylinders and large pipes, featuring a rigid cast iron base for vibration-free operation and ultra-precise 0.01mm repeatability. The 40mm spindle diameter handles heavy-duty steel alloys effortlessly.

Advanced Energy-Saving Motor Technology

Equipped with a 15kW servo-driven spindle (50-3000 RPM programmable) and automatic lubrication system, reducing power consumption by 30% compared to conventional models. Polyurethane belt transmission ensures silent operation in 24/7 production environments.

Multi-Functional Boring & Drilling Capability

Integrated BAT tooling system processes Ø30-400mm tubes in single setup, with optional live tooling for threading/grooving. Hardened guide rails and ball screws guarantee ±0.015mm tolerance for aerospace-grade hydraulic components.

Smart Industrial 4.0 Readiness

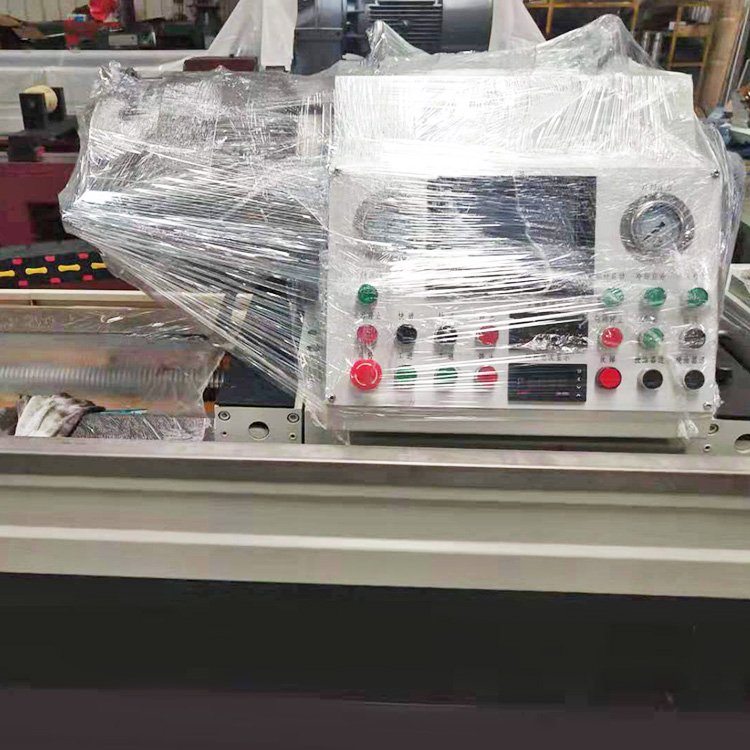

Pre-wired for IoT connectivity (RS485 port) with compatible GSK 980TDb CNC system supporting DXF file import. Includes automatic chip conveyor and coolant filtration for unmanned machining of oil/gas pipelines.

Application-Specific Advantages

Ideal for manufacturing excavator rams, offshore hydraulic cylinders, and gun barrel linings. Tungsten-coated drill bits (included) extend tool life by 5X when processing 45# steel or ductile iron.
