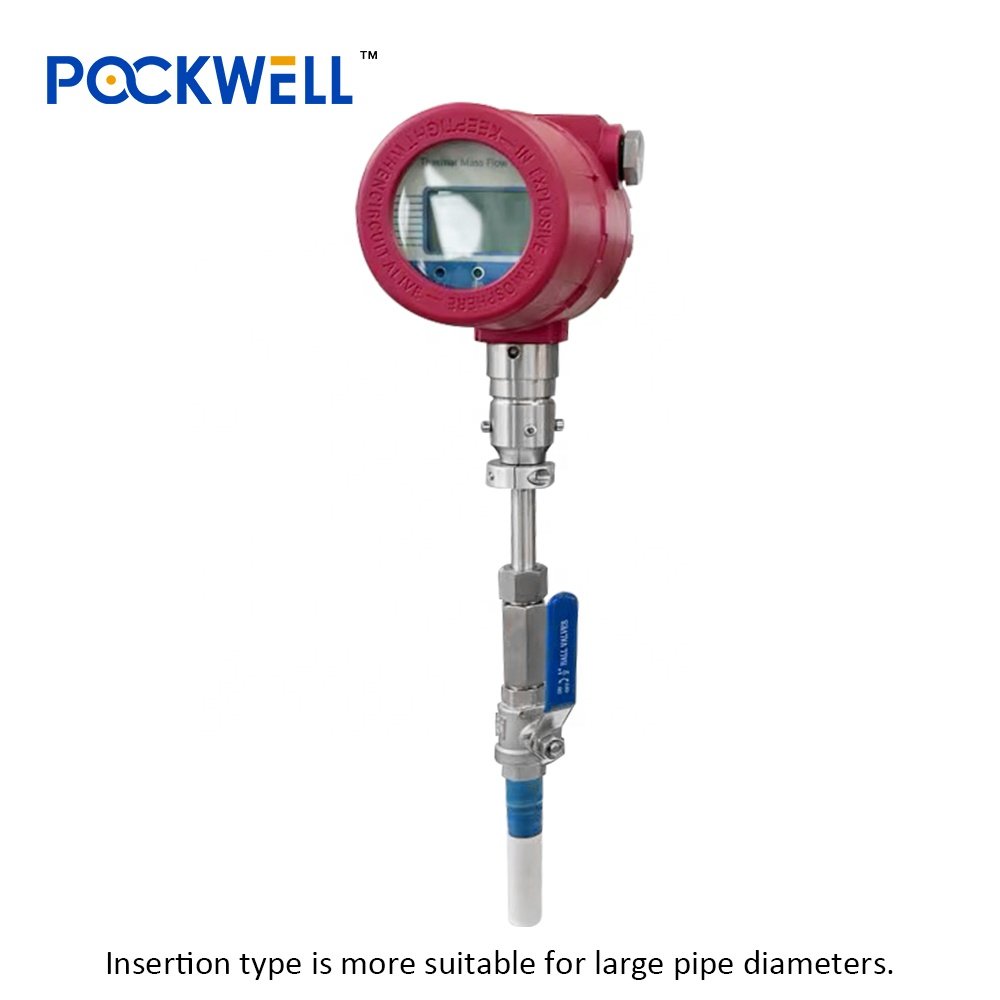

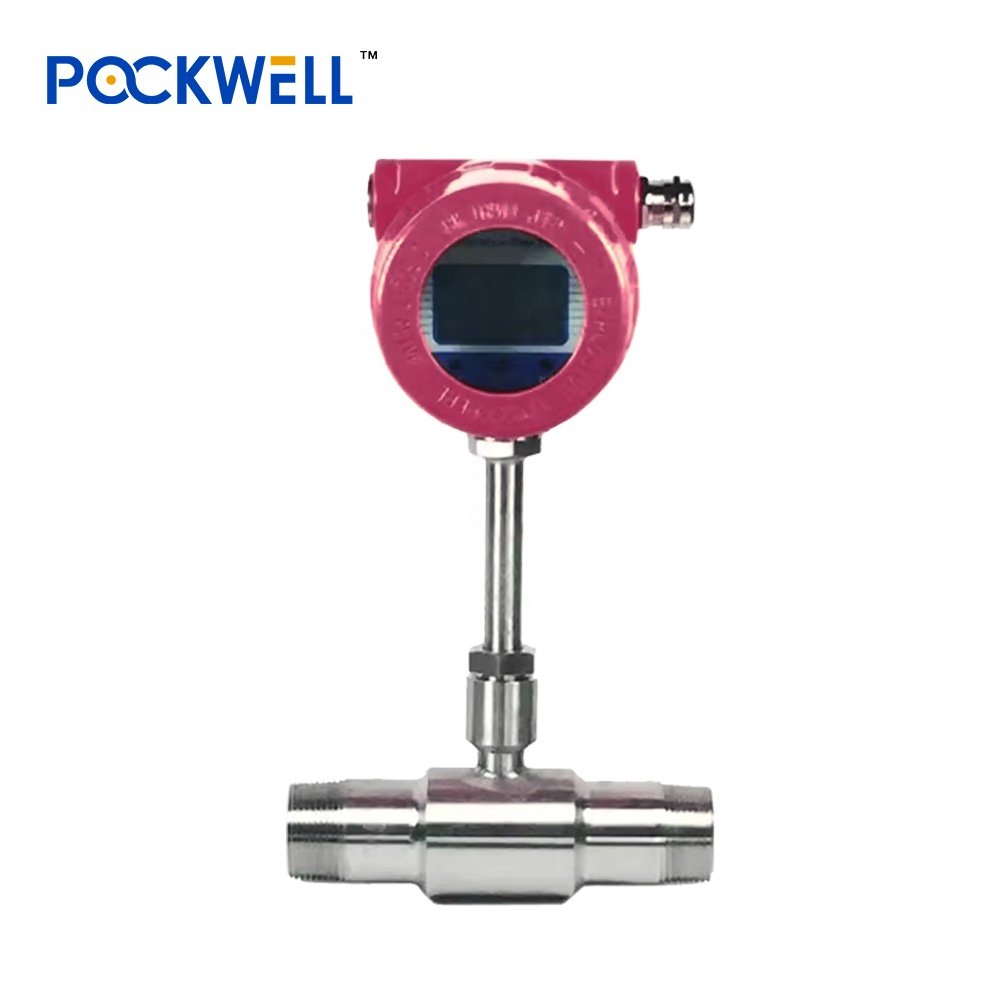

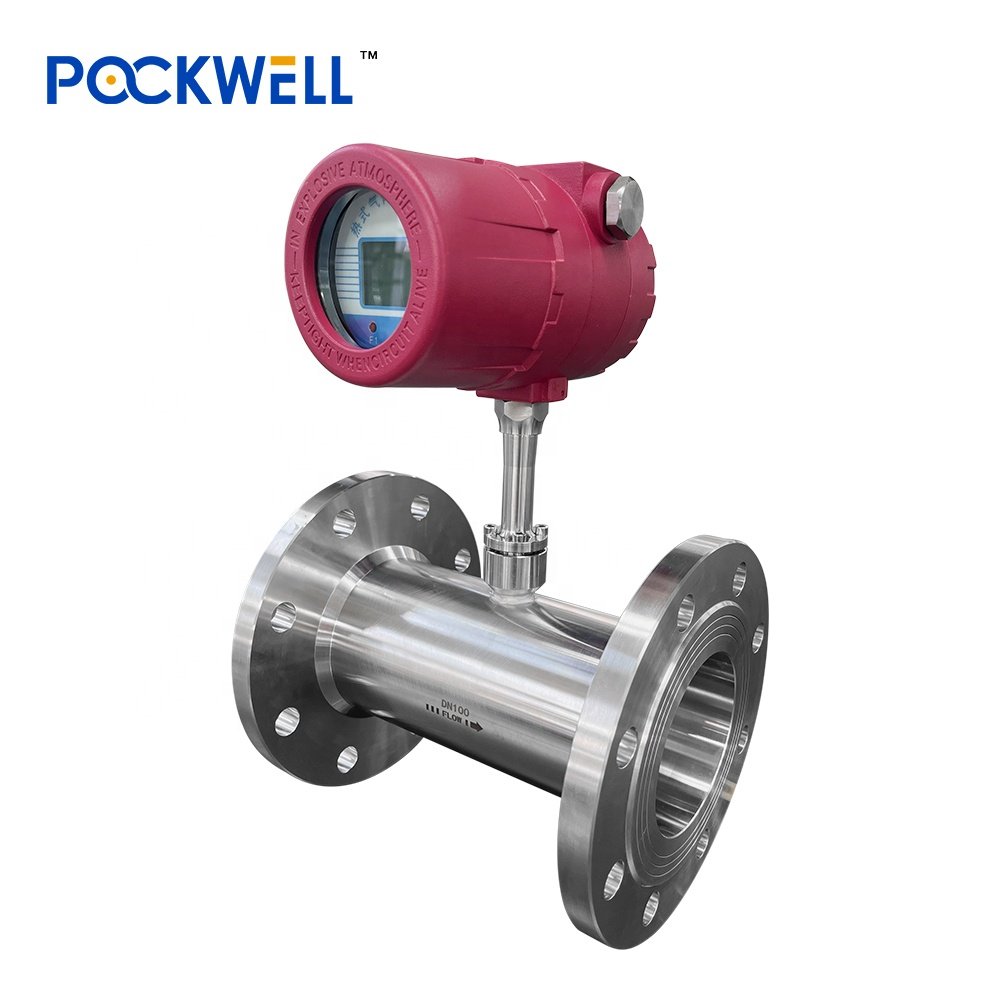

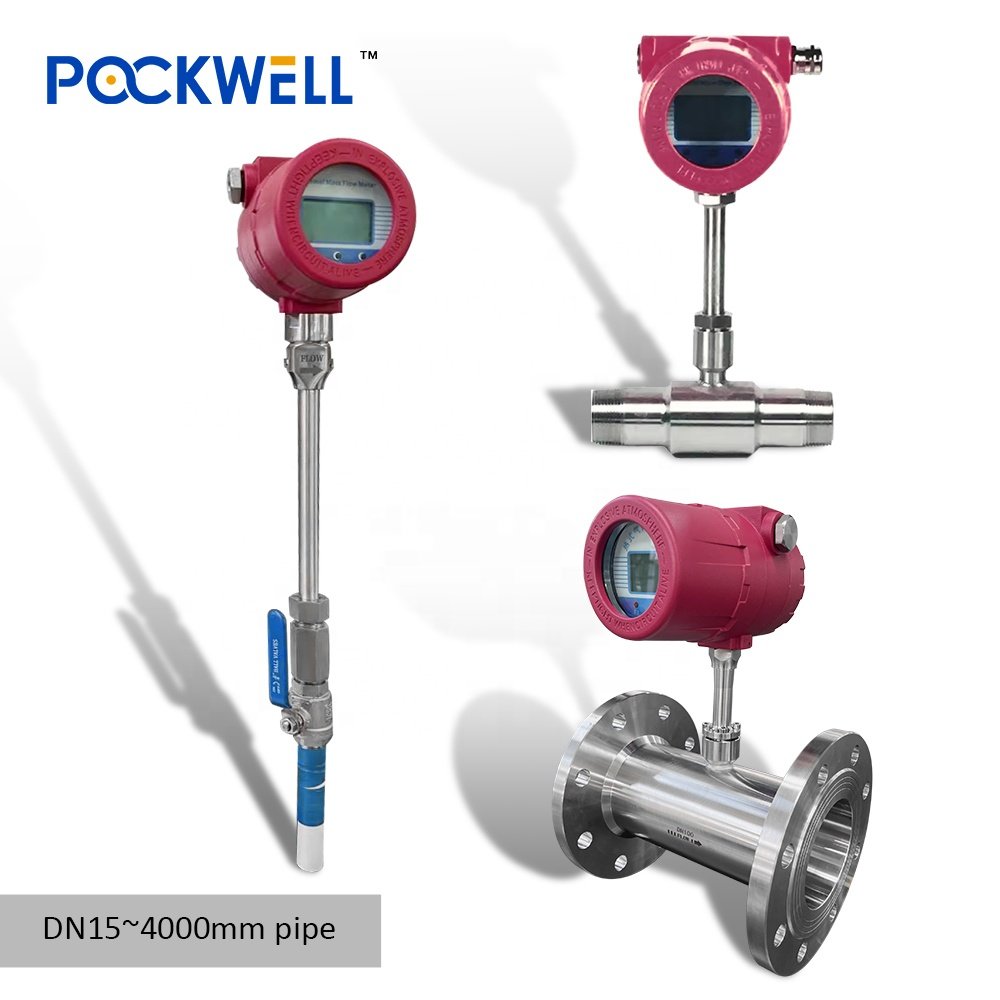

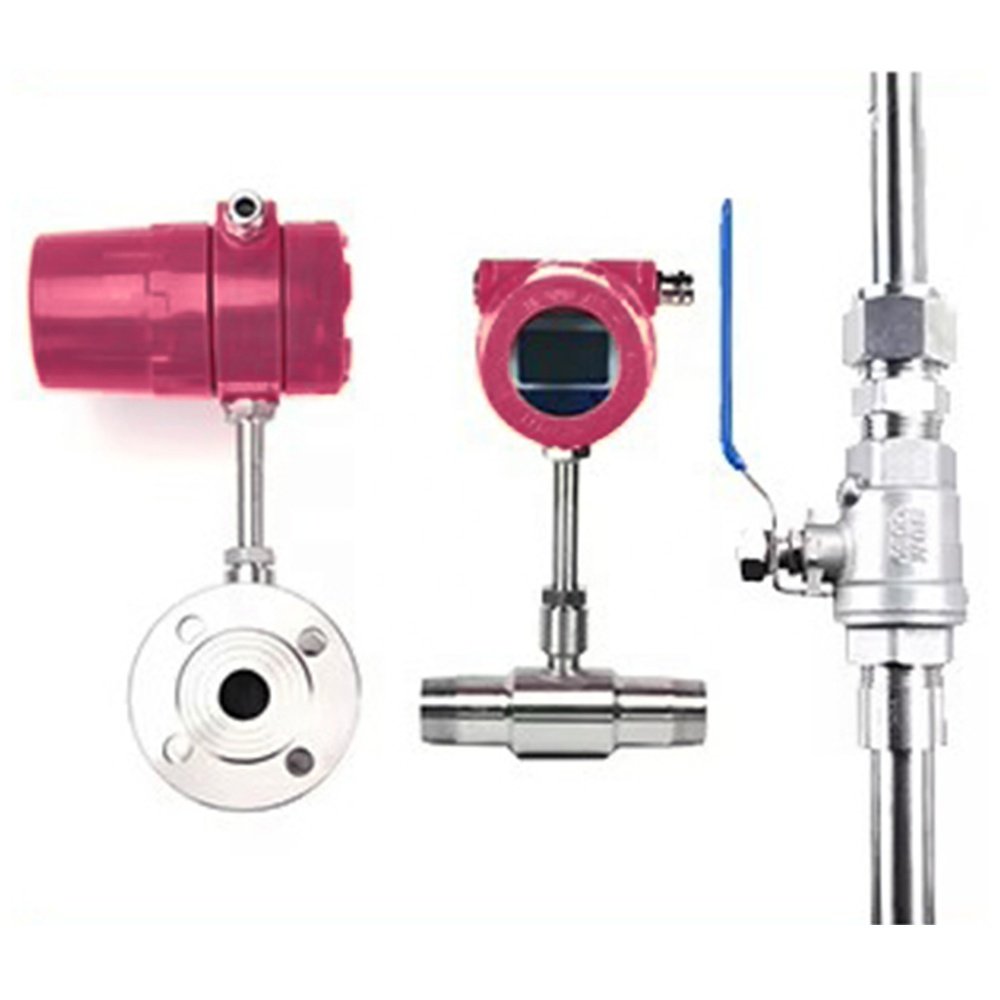

PWF-TGMF High-Precision Thermal Mass Flow Meter for Industrial Gas Monitoring
Ultra-accurate CO2/NH3/H2/LPG gas measurement with ±1% reading precision, ensuring reliable data for critical applications. Robust 316 stainless steel construction with IP65-rated housing, built to withstand harsh industrial environments. Advanced thermal dispersion technology delivers fast response (<1s) and wide turndown ratio (100:1), ideal for fluctuating flow conditions. No moving parts design guarantees minimal maintenance and long-term stability. Perfect for biogas plants, chemical processing, HVAC systems, and fuel cell research. Calibrated for multiple gases with NIST-traceable certification available. Direct mass flow measurement eliminates need for pressure/temperature compensation. Integrates seamlessly with PLC/SCADA systems via 4-20mA/RS485 outputs. Optional explosion-proof (ATEX) version for hazardous areas. Ships with detailed calibration report and 18-month warranty.
Key Specifications:
- Measurement Range: 0.05-120 Nm/s (customizable) - Operating Pressure: Up to 1.6MPa - Temperature Resistance: -40°C to 350°C - Process Connections: 1/2" to 4" NPT/Flange options Bulk discounts available for OEM/industrial buyers. Global shipping with DDP incoterms support.
