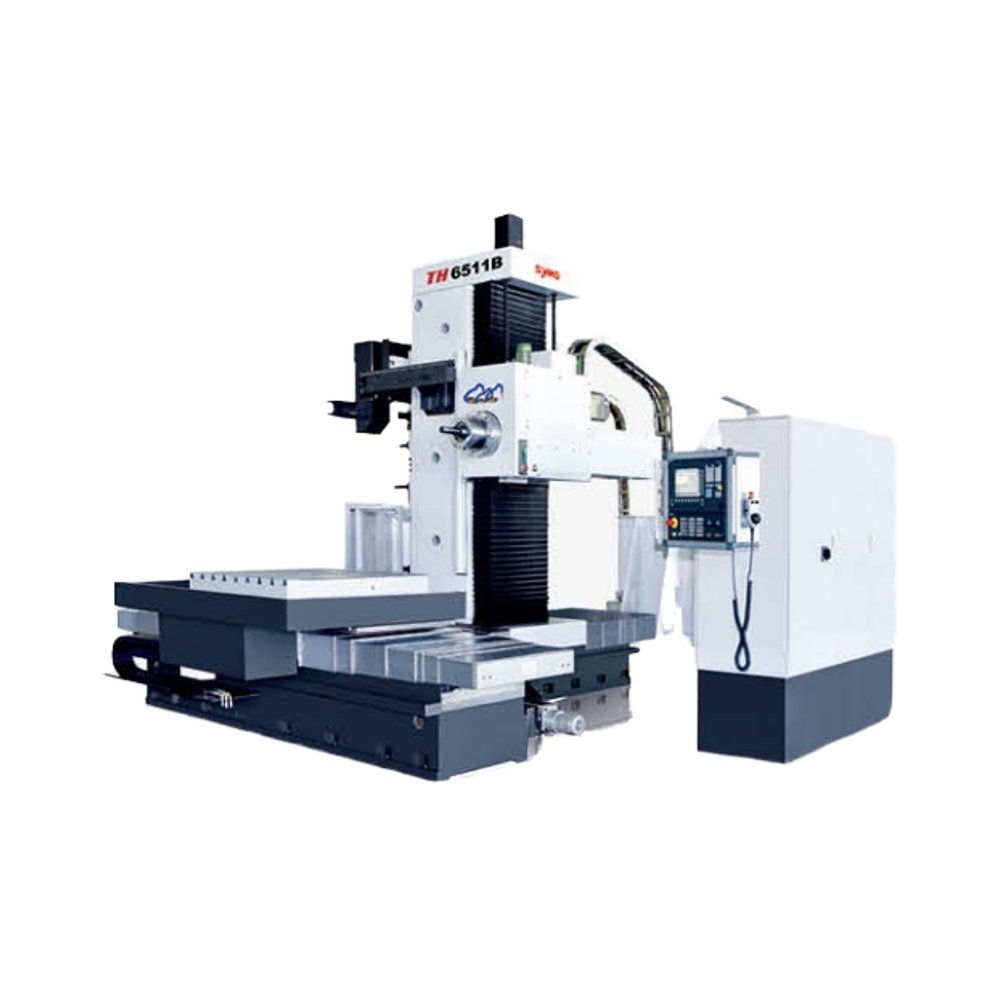

TH6511B High Precision CNC Boring and Milling Machine – Industrial-Grade Performance

Ultra-Stiff Construction
– Heavy-duty cast iron frame with reinforced ribs ensures superior vibration damping and long-term stability for high-tolerance machining.
Precision Spindle System
– High-rigidity BT50 spindle with P4-grade bearings delivers ±0.005mm repeatability, ideal for aerospace molds and automotive components.
Advanced CNC Control
– Equipped with Siemens 828D or Fanuc 0i-MF Plus (optional) for complex contour milling and rigid tapping up to M48.
Modular Table Design
– 1600x1400mm hardened/worm-gear rotary table (0.001° indexing) supports 5-axis simultaneous machining of turbine blades.
Coolant Optimization
– High-pressure through-spindle coolant (30 bar) extends tool life during deep cavity boring in hardened steels (HRC 45+).
Energy-Smart Operation
– Servo-driven ball screws and centralized lubrication cut power consumption by 25% vs. conventional models.
Typical Applications
– Wind turbine hubs, marine propulsion shafts, mining equipment bearing housings, and large injection molds.
Global Logistics Ready
– FOB Shanghai with ISO-certified crating for ocean freight. MOQ 1 unit, lead time 45 days.
