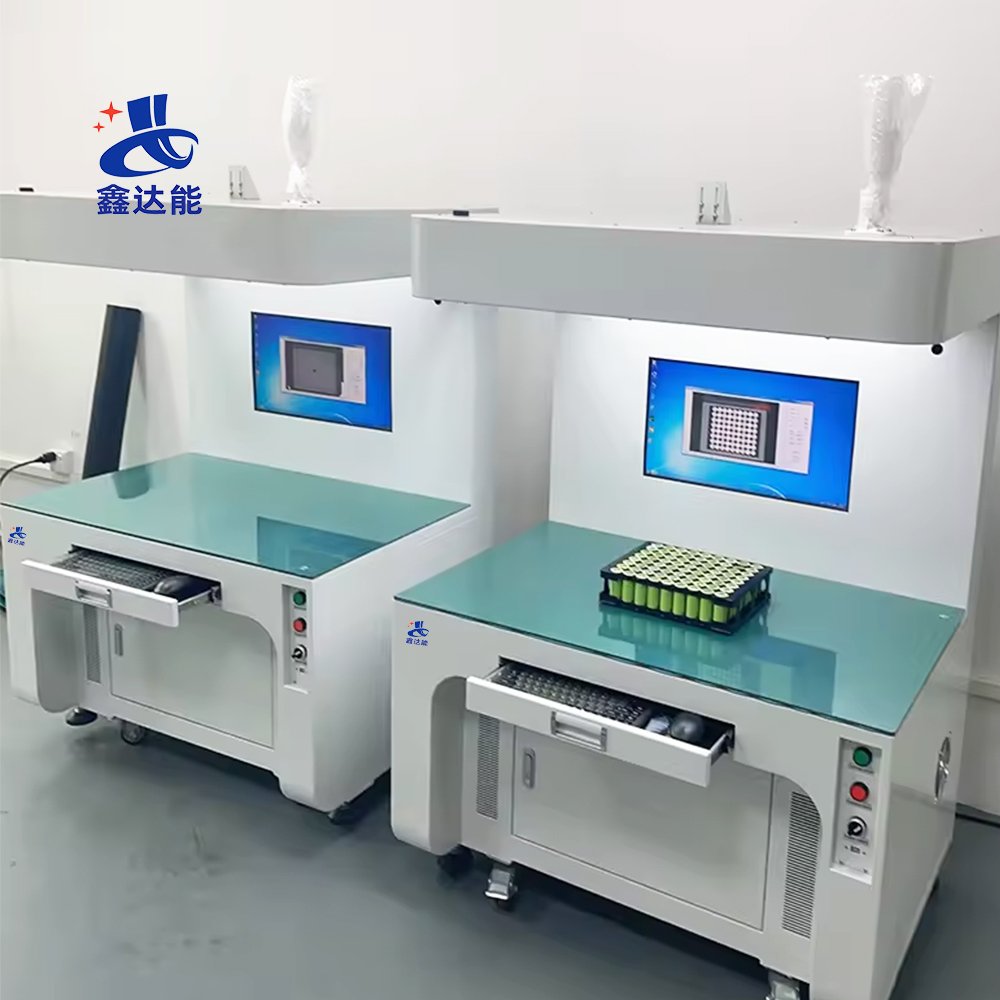

Automatic Powered Visual Inspection CCD Testers Battery Pack Visual Inspection System for Cylindrical Battery

High-Precision Detection

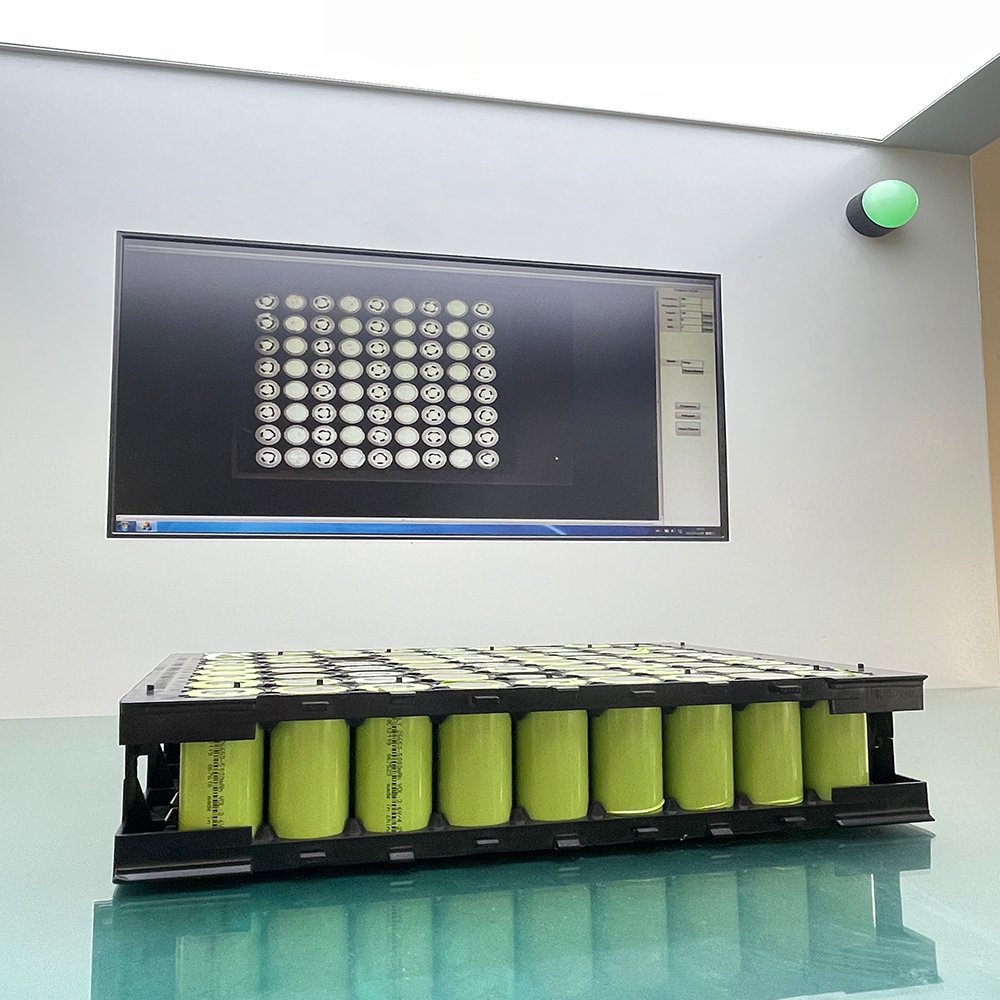

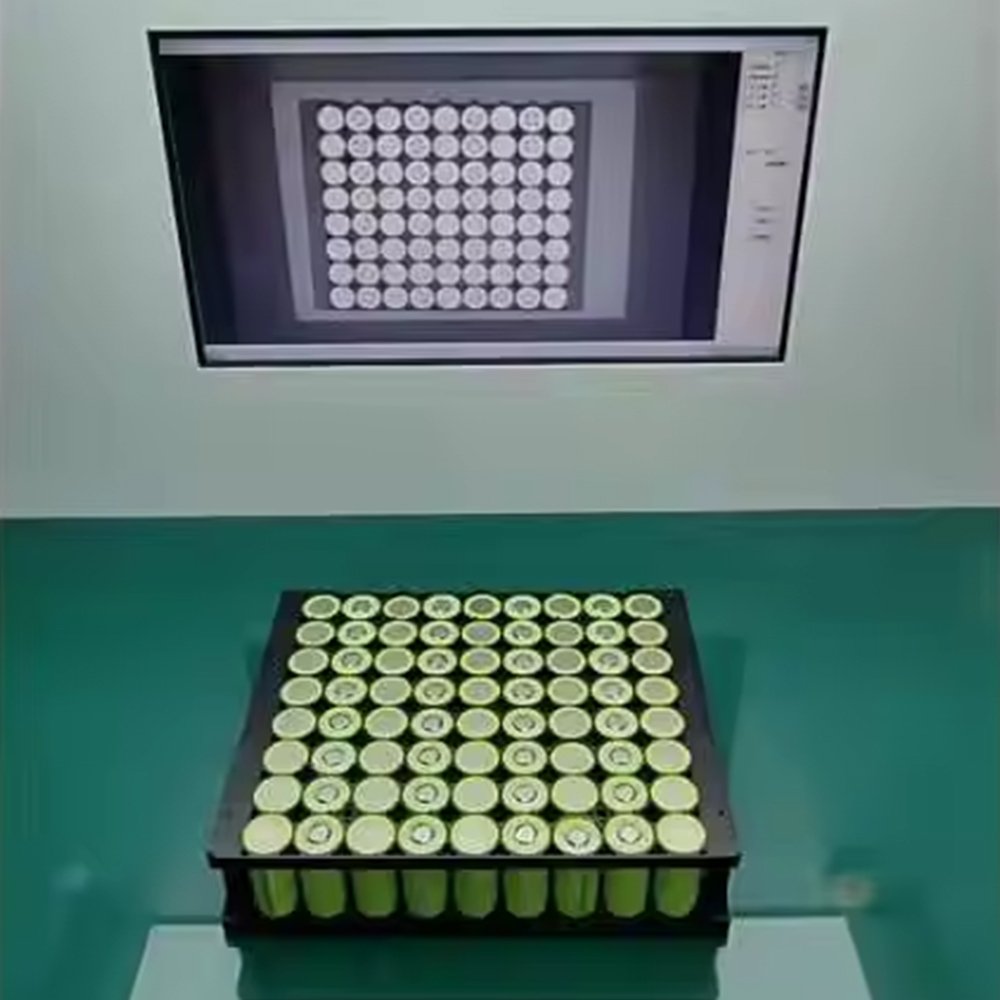

Advanced CCD imaging technology ensures micron-level accuracy for identifying defects like scratches, dents, and misalignments on cylindrical battery surfaces.
Fully Automated Operation

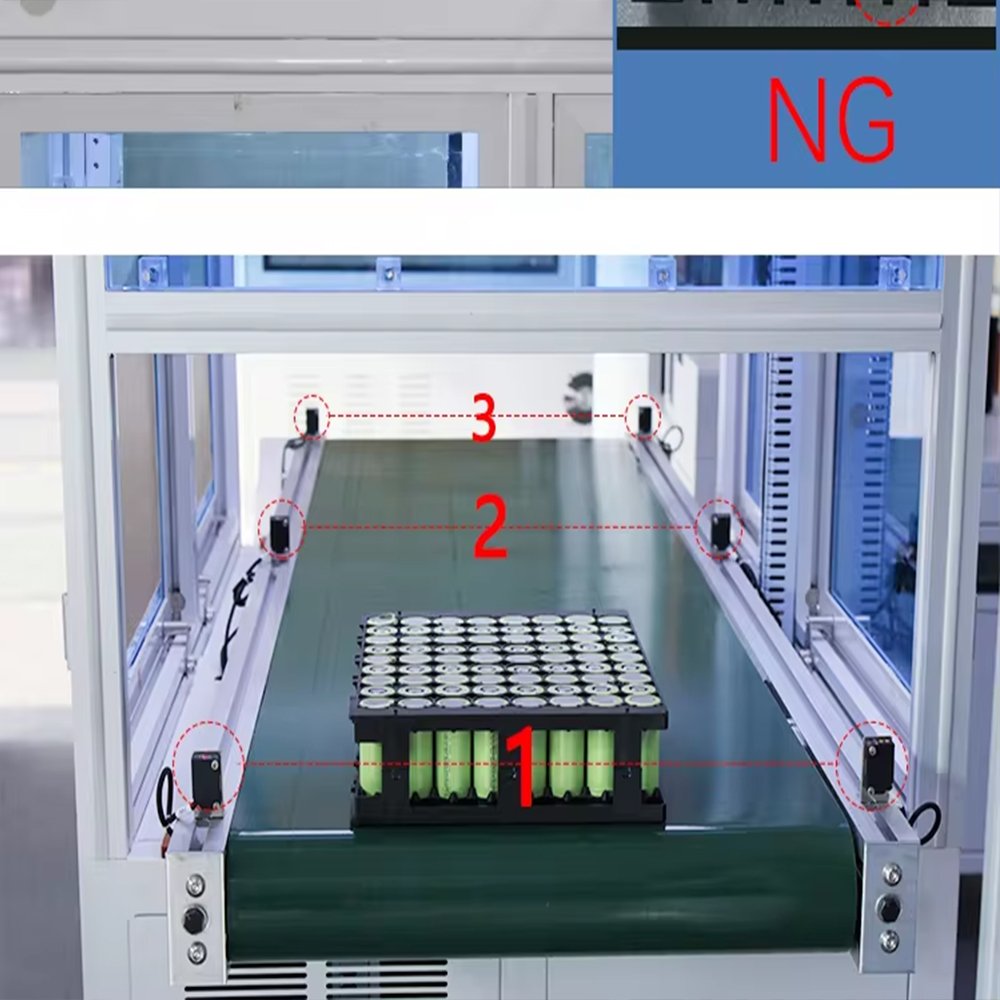

Integrated motorized system enables unattended inspection, reducing labor costs and human error with consistent 24/7 performance.
Multi-Parameter Analysis
Simultaneously checks dimensions, surface flaws, and terminal alignment, with customizable tolerance settings for varied industry standards.
Robust Industrial Design
Durable aluminum alloy frame and shock-resistant optics ensure stability in high-volume production environments.
Wide Compatibility
Adjustable fixtures accommodate battery diameters from 18650 to 21700, ideal for EV, energy storage, and consumer electronics manufacturing lines.
Real-Time Reporting
Instant NG/OK classification with data export for traceability, compliant with ISO 9001 and IATF 16949 quality protocols.
Plug-and-Play Integration
Standardized communication interfaces (RS485/Ethernet) allow seamless connectivity with existing PLCs or MES systems.
Energy-Efficient Performance
Low-power servo motors and LED lighting reduce operational costs by up to 30% versus conventional systems.
Applications
Mass production QC for lithium-ion batteries, post-assembly verification, and R&D sample validation.
