TBK 2202 Fold Infrared Thermal Imaging Analyzer – Fast & Precise PCB Diagnosis Tool

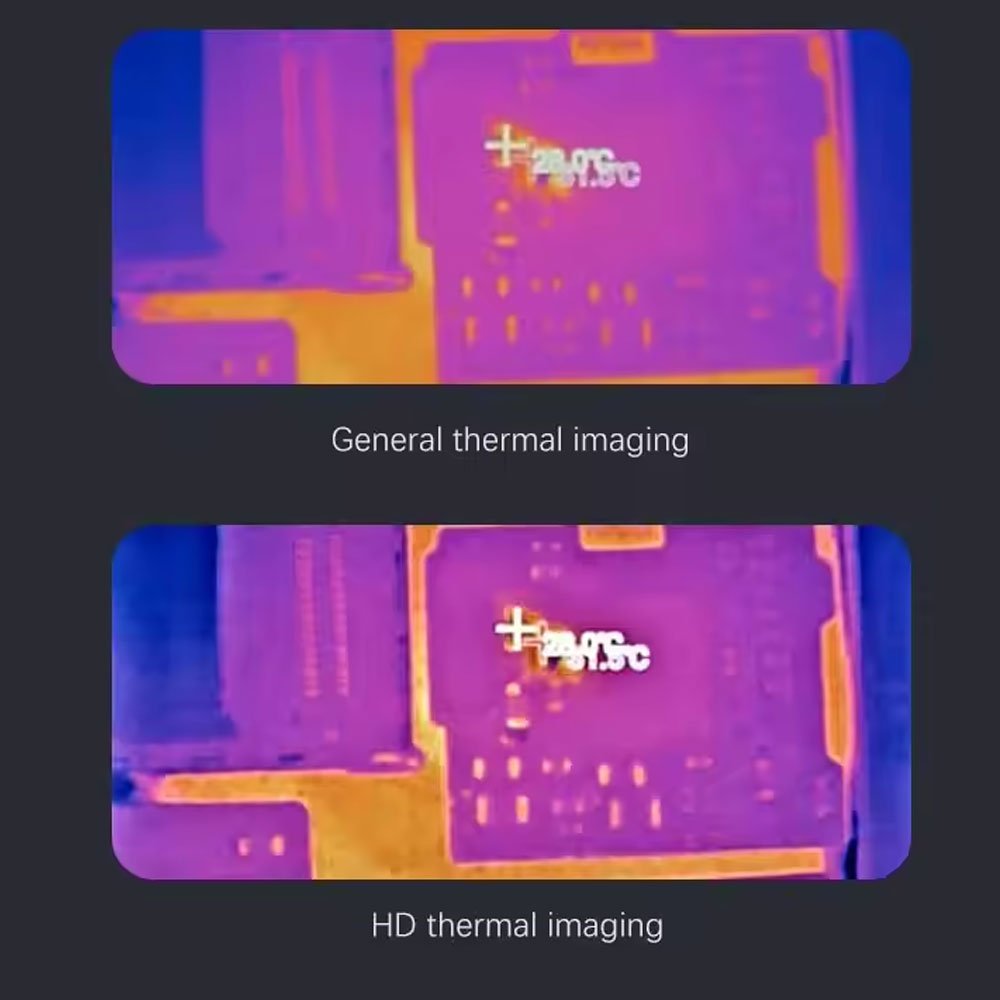

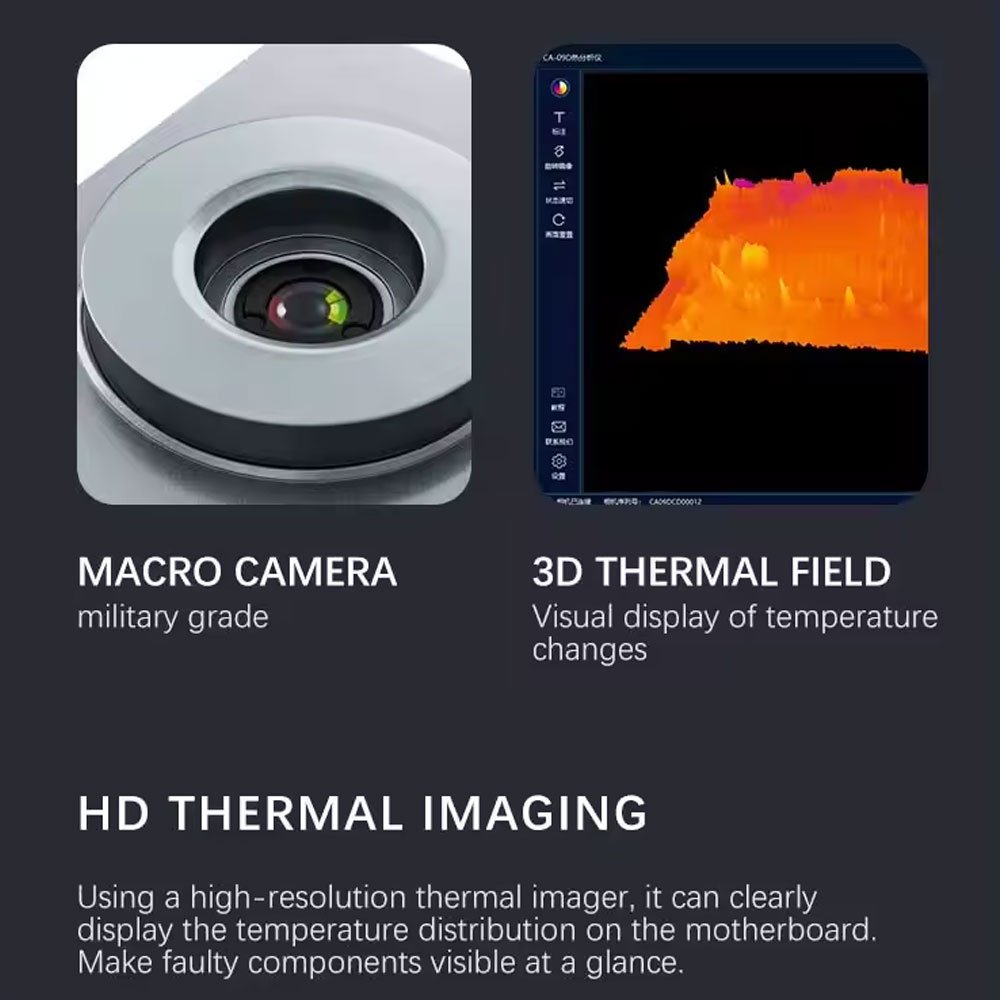

High-Resolution Thermal Imaging
Equipped with advanced infrared sensors for accurate temperature mapping (up to 0.05°C sensitivity), detecting minute heat variations on PCBs and phone motherboards.
Ultra-Fast Fault Detection
Identifies short circuits, overloads, and defective components in seconds with real-time thermal visualization (refresh rate: 25Hz).

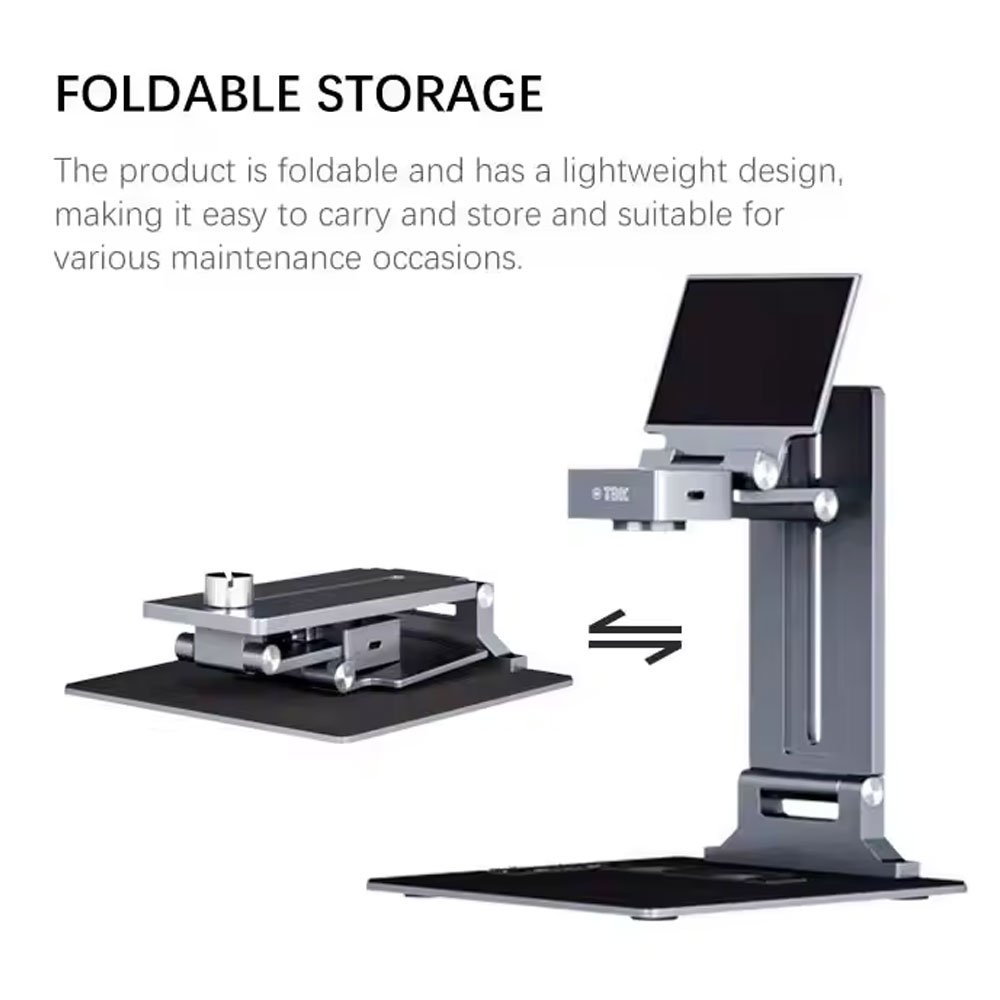

Portable & Foldable Design
Lightweight aerospace-grade aluminum body with a compact folding mechanism for easy storage and fieldwork.
Multi-Layer PCB Analysis
Penetrates up to 4-layer circuit boards, pinpointing hidden faults like cold solder joints or broken traces without disassembly.
Wide Compatibility
Works with smartphones, tablets, and embedded systems. Ideal for repair shops, electronics manufacturers, and QA testing labs.

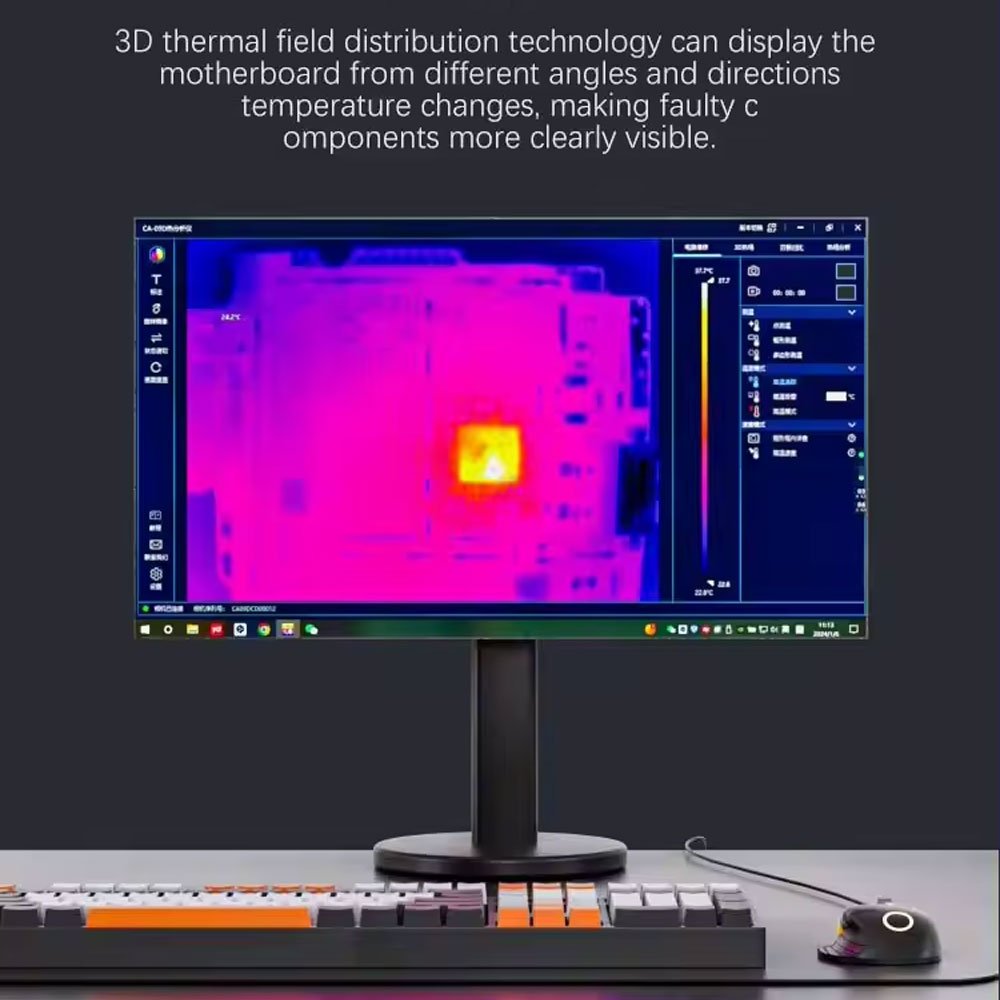

User-Friendly Software
Includes PC suite for thermal data logging, customizable alarms, and exportable reports in CSV/IMAGE formats.
Durable & Precise

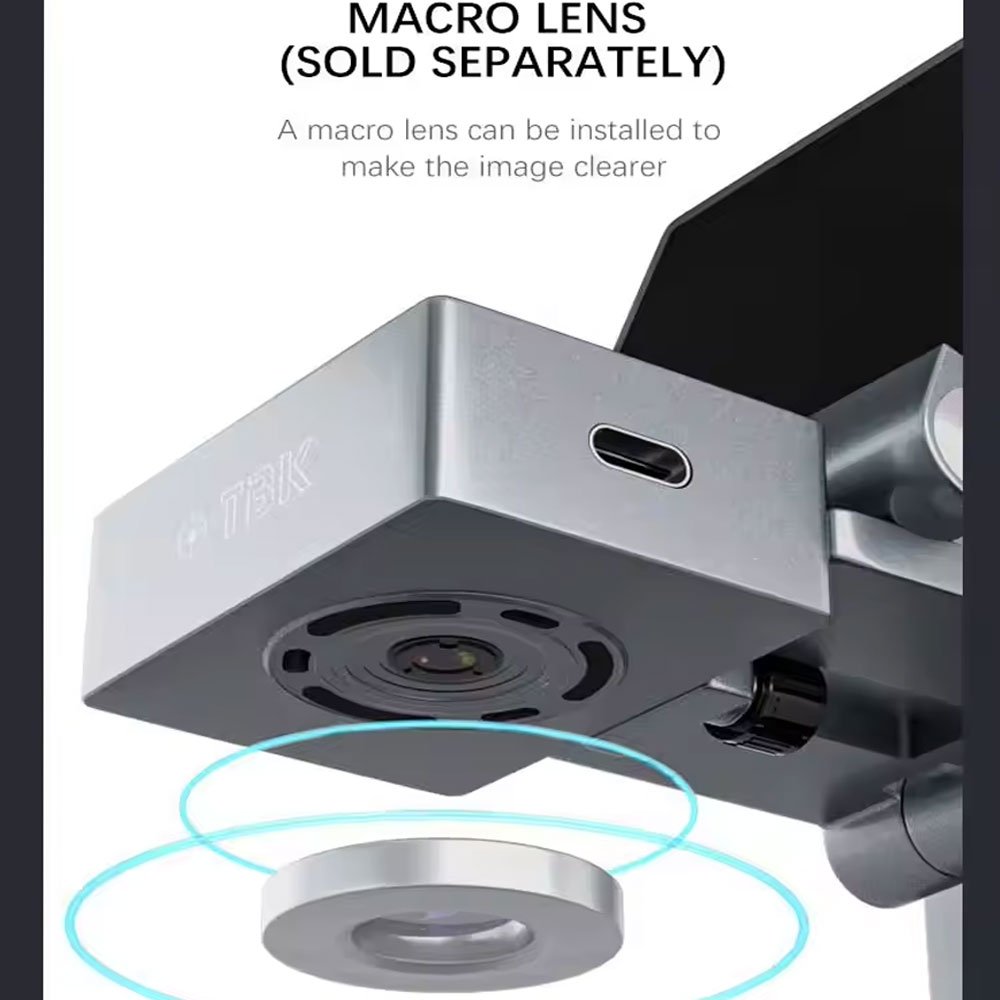

German-engineered optical lens with scratch-resistant coating and ±1% measurement accuracy.
Silent & Efficient
Noise-free operation with 8-hour battery life (5000mAh Li-ion), USB-C rechargeable.
Global Warranty & Bulk Discounts
Direct factory pricing with volume deals for wholesalers and enterprises. ISO 9001 certified.
